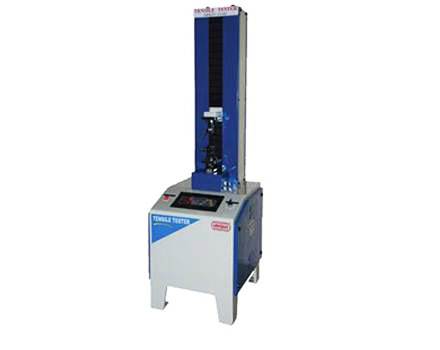

This equipment is extremely versatile for conducting Tensile Strength Test of paper, paperboard, etc.
It can also be useful for testing compression and tension forces.
Available in three models:
- Digital Model
- Micro Processor-based Digital Model
- Fully Automatic Model with Integrated Computerised Touch Screen Control Panel
Suitable for testing as per following Standard
- IS:1924(Partll)1995
- ASTM : D828-93
- TAPPI: T494 om-01
Technical Specification:
—————————————————————————————————————————————–
- Max. Admit between Platens 500 mm
- Minimum Admit 50mm
- Loading Capacity 250kgf
- Load Indicator Resolution 0.2% Full Scale
- Load Indicator Sensitivity ±0.4% FS
- Lenth Indicator Resolution 0.1 mm
- Lenth Indicator Accuracy ±0.2 mm
- Loading Speed 25.4 mm/min.Additional 12.5mm/min for UTTCR-P/-TS
- Electric Supply Requirement 1Phase 220V-AC 50Hz With positive netural & Earthing
Options provided in UTTCR-P & UTTCR-TS
—————————————————————————————————————————————–
- Supplied with 2 speed setting for conducting ECT,FCT,RCT & PAT along with necessary attchments.
- User select betwwen test speed of 12.5 mm/min & 25mm/min depending on requirement of the capacity:500kgf
Models:
—————————————————————————————————————————————–
- UTT-P- Micro Processor Based Model
- UTT-TS Computerised Touch Screen Model
- UTTCR-P- Microprocessor Based Model with Crush Tester
- UTTCR-TS-Computersied touch screen Model with crush Tester
