Essential for quality control and development for consumers of corrugated and solid fibreboard, shipping containers, etc. Ascertains transport- worthiness of the container.
Operation :

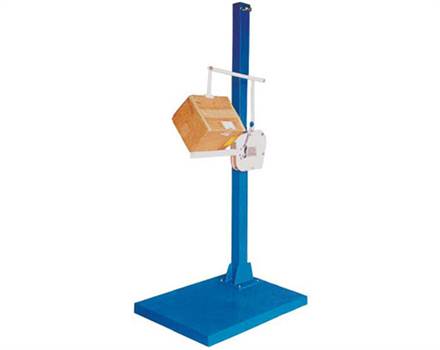

A box attached to a vertical column is provided with mechanism to release the resting table instantaneously. For easy adjustment of the drop heights this box is balanced by a counter-weight over a pulley. Package under test is placed on the resting table. By pressing the lever on the box, the package is allowed to fall on the platform at the bottom. The fall is straight and perfectly vertical.
The machine is sturdy and easy to operate.
Machine for larger capacity and bigger packages will be available on request.
Rotational Drop Test can be provided on request.
Suitable for testing as per following Standard
————————————————————————————————————————————
Salient Features
————————————————————————————————————————————
Technical Specifications (Mechanical Model)
————————————————————————————————————————————
Pneumatic Model
Additional Features (Pneumatic Model)
————————————————————————————————————————————
Technical Specifications (Pneumatic Model)
| Drop Heights | Max. 1200 mm Min. 400 mm |
| Max. weight of the test package | 50 kg |
| Max. size of the package | 600 x 600 x 600 mm |
| Floor Space Height | 1200 x 1000 mm 2250 mm |
| Power Requirement for Pneumatic Model | 1.0 kW Single Phase 220 V AC |
| Compressed air requirement for Pneumatic Model (To be provided by user) | 2 CFM at 5 Bar Pressure |
