The first of its kind in India, to fulfill the basic need of quality control and development for manufacturers and users of paper packaging. An electronic instrument to measure and directly indicates the Compression Strength of small cartons, Edge Crush, Flat Crush and Pin Adhesion of Corrugated Board and Ring Crush and Corrugating Medium Test (CMT) of Paper and Paperboard.
An useful equipment to determine the probable compression strength of corrugated and solid fibreboard boxes by testing the paper and paperboard used in making such boxes.
UBIQUE Crush Tester
Model: Digital Model
Application: Suitable for conducting multiple sensitive tests like Ring Crush Test, Edge Crush Test, Flat Crush test, Pin Adhesion Test, Concora Medium Test and Corrugated Crush Test.
Features:
● Specimen holders for Ring Crush, Edge Crush and Flat Crush.
● LED Indicator for Load values.
● Gain mode switch to achieve finer least count.
● Auto test termination and retreat based on peak detection.
● Settable Peak Drop.
Other attachment on request.
Capacity: 500 KgF.
Least Count: 0.1 for 500 KgF & 0.01 for 50 Kg under gain mode
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Confirms to TAPPI, FEFCO, ASTM, ISO etc....
UBIQUE Crush Tester
Model: Microprocessor based Digital Model
Application: Suitable for conducting multiple sensitive tests like Ring Crush Test, Edge Crush Test, Flat Crush test, Pin Adhesion Test, Concora Medium Test and Corrugated Crush Test.
Features:
● Specimen holders for Ring Crush, Edge Crush and Flat Crush.
● 4 Line LCD Display for indicating test results.
● Gain mode switch to achieve finer least count.
● Programable Menu for Test Parameters and Batch Information.
● Selectable unit of measurement.
● Settable Peak Drop.
● Review of previous test batch.
● Auto test termination and retreat based on peak detection.
● Memory for single batch upto 30 readings
● RS232 port for Data transfer to PC - software included
● LPT1 Printer port for printer for printing test results
Other attachment on request.
Capacity: 500 KgF.
Least Count: 0.1 for 500 KgF & 0.01 for 50 Kg under gain mode
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Printer: 80 col dot matrix Printer (user to provide)
Data Transfer: Windows 7 PC (user to provide)
UBIQUE Crush Tester
Model: HMI Control Panel
Application: Supplied with fixtures for conducting multiple sensitive tests like Ring Crush Test, Edge Crush Test & Flat Crush test,
Additional Tests: Pin Adhesion Test, Concora Medium Test, Corrugated Crush Test, Score Quality Test etc...
Features:
● Operations via 7" HMI Touch Panel powered by CONNEXT.
● Load mapping and sensing based on displacement to improve repeatability, reproducibility of batch results.
● Specimen holders for Ring Crush, Edge Crush and Flat Crush.
● Settable Peak Drop.
● Selectable Unit of measurement.
● Test Program storage with easy recall function.
● Test wise data management and storage.
● Network enabled for sharing or printing LAN.
● USB Ports for data download or Backup & Restore.
● Data delete protection via administrative password.
● Remote Support via internet enabled.
● Long Term Data Storage
Other attachment on request.
Capacity: 500 KgF.
Least Count: 0.01 for 500 KgF
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase

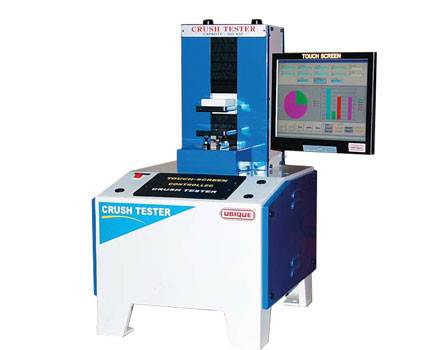

UBIQUE Crush Tester
Model: Micro Processor based Touch Screen & PC based Control Panel
Application: Suitable for conducting multiple sensitive tests like Ring Crush Test, Edge Crush Test, Flat Crush test, Pin Adhesion Test, Concora Medium Test and Corrugated Crush Test.
Features:
● Specimen holders for Ring Crush, Edge Crush and Flat Crush.
● Settable Peak Drop.
● Auto test termination and retreat based on peak detection.
● Selectable Unit of measurement.
● Long Term recipe storage with easy recall function.
● Long Term data storage.
● Test batch data filters view for easy retrieval of test data.
● Network enabled for using sharing reports over LAN or
● printing reports on network printers.
● Data delete protection via administrative password
● Remote Support via internet is possible.
● Long Term Data Storage.
Other attachment on request.
Capacity: 500 KgF.
Least Count: 0.1 for 500 KgF & 0.01 for 50 Kg under gain mode
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
UBIQUE Crush Tester
Model: Microprocessor based Touch Screen CONNEXT+ Control Panel Model
Application: Supplied with fixutres for conducting multiple sensitive tests like Ring Crush Test, Edge Crush Test & Flat Crush test as per TAPPI, FEFCO, ASTM Standards.
Additional Tests: Pin Adhesion Test, Concora Medium Test, Corrugated Crush Test, Score Qaulity Test etc...
● Operations via 17" HMI Capacitive Touch Panel powered by CONNEXT.
● Load mapping and sensing based on displacement to improve repeatability, reproducibility of batch results.
● Settable Peak Drop
● Selectable Unit of measurement
● Test Program storage with easy recall function
● Manage, Store, Review and reporting of past test data batches
● User management and data audits
● Network enabled for sharing or printing LAN
● USB Ports for data download or Backup & Restore
● Remote Support via Internet enabled
● Long Term Data Storage
Other attachment on request.
Capacity: 500 KgF.
Least Count: 0.01 for 500 KgF
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
UBIQUE Signature Crush Tester
Model: Servo motor Controlled Computerised Control Panel
Application: Suitable for conducting multiple sensitive tests like Ring Crush Test, Edge Crush Test, Flat Crush test, Pin Adhesion Test, Concora Medium Test, Corrugated Crush Test, Score Quality Test and User Customised test.
Features:
● Center driven loading Platen
● Servo Controlled platen displacement.
● Load mapping and sensing based on displacement to
● improve repeatability, reproducibility of batch results.
● Specimen holders for Ring Crush, Edge Crush and Flat Crush.
● Settable Peak Drop.
● Selectable Unit of measurement.
● Long Term recipe storage with easy recall function.
● Long Term data storage.
● Test batch data filters view for easy retrieval of test data.
● Network enabled for sharing or printing LAN.
● USB Ports.
● Data delete protection via administrative password.
● Remote Support via internet is possible.
● Long Term Data Storage
Other attachment on request.
Capacity: 500 KgF.
Least Count: 0.1 for 500 KgF & 0.01 for 50 Kg under gain mode
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
