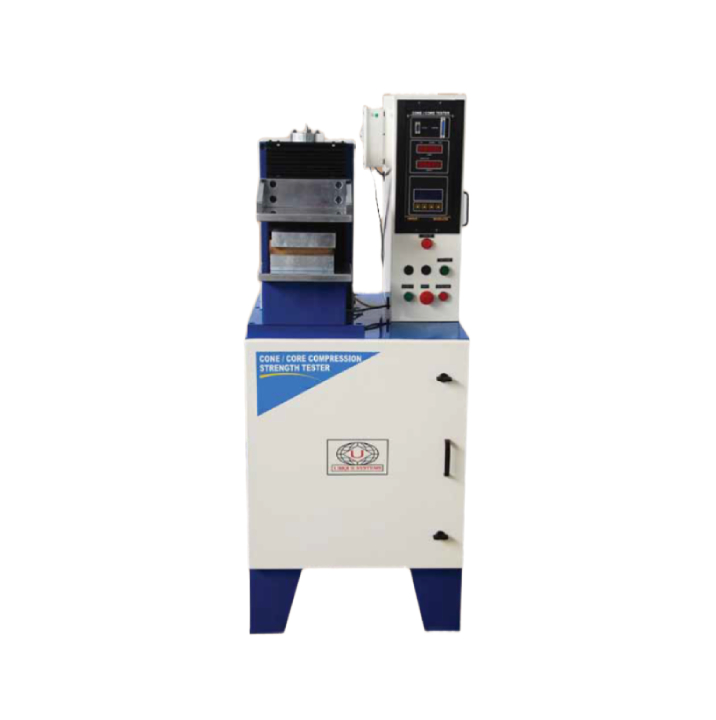

The first of its kind in India, to fulfill the basic need of quality control and development for manufacturers and users of Cone/ Core. An electronic instrument to measure and directly indicate the Compression Strength of Cone/Core.
Description
| Model | UCCT1000 & UCCT1000-P | UCCT2000 & UCCT2000-P |
| Load Cell Capacity | 1000 kgf | 2000 kgf |
| Load Cell Sensitivity | ± 0.2% Full Scale | ± 0.2% Full Scale |
| Load Indicator Resolution | 0.1% F.S. | 0.1% F.S. |
| Load Indicator Accuracy | ± 0.4% F.S | ± 0.4% F.S |
| Max. Sample Size | 75 mm dia X 100 mm Length | 200 mm dia X 300 mm Length |
| Admit between Platen | 200 mm | 500 mm |
| Loading Speed | 10 ± 2.0 mm per minute | 10 ± 2.0 mm per minute |
| Power Requirement | 1 kW Single Phase 220 Volts AC | 3 kW Three Phase 415 Volts AC |
| Dimensions in mm (L x W x H) | 550 x 620 x 900 | 1000 x 920 x 2100 | Weight in kg | 180 | 650 |
Digital Model
Salient Features
________________________________________________________________________
Micro Processor-based Model
Salient Features
________________________________________________________________________
Additional Features
________________________________________________________________________
