Bursting Strength is a reliable index of the strength and performance of materials like paper, paperboards, corrugated boards and boxes, solid fibreboards, filter cloth, industrial fabrics, leather, rexine, etc.
UBIQUE Bursting Strength Tester is ideal for testing a wide range of materials to determine their quality, strength and performance.
UBIQUE Bursting Strength Tester is easy to operate. It is scientifically calibrated for reliability. It is widely used by industries and institutions and stands out as a proven and reliable equipment.
Paper Testing
UBIQUE Bursting Stregth Tester for Paper
Model: Digital Economy with Manual clamping
Application: Bursting Stregth Test of Paper as per TAPPI standard T-403 and other relevant international standards.
Features:
● Push Button operation
● Abression free Manual clamping with ball spring.
● LED indicator for digital indication of test results with peak hold function
● Selectable Unit of measurement
Capacity: 14 Kg/cm².
Least Count: 0.01 for 14 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
UBIQUE Bursting Strength Tester for Paper
Model: Digital with Automatic clamping
Application: Bursting Strength Test of Paper as per TAPPI standard T-403 and other relevant international standards.
Features:
● One touch Test start operation to perform full test cycle automatically.
● Automatic Pneumatic Clamping with settable pressure.
● Abression free Manual clamping with ball spring.
● LED indicator for digital indication of test results with peak hold function
● Selectable Unit of measurement
Capacity: 14 Kg/cm².
Least Count: 0.01 for 14 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to Provide)
UBIQUE Bursting Strength Tester for Paper
Model: Micro Processor based Digital Model
Application: Bursting Stregth Test of Paper as per TAPPI standard T-403 and other relevant international standards.
Features:
● LCD indicator for digital idication of test reults with peak hold function.
● One touch Test start operation to perform full test cycle automatically.
● Easy change over from Paper test head to Board test head.
● Automatic Pneumatic Clamping with settable pressure.
● Adujustable clamp penetration setting.
● Programable Menu for Test Parameters and Batch Information.
● Review of previous test bacth.
● Fast Mode for approach and retreat.
● Printer port (LPT1) for Printed report.
● Serial Port (RS232) for Data transfer - Software included.
Capacity: 14 Kg/cm².
Least Count: 0.01 for 14 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (user to provide)
Printer: 80 col dot matrix Printer (user to provide)
Data Transfer: Windows 7 PC (user to provide)
UBIQUE Bursting Strength Tester for Paper
Model: HMI Control Panel
Application: Bursting Stregth Test of Paper as per TAPPI standard T-403 and other relevant international standards.
Features:
● Operations via 7" HMI Touch Panel powered by CONNEXT.
● Automatic Pneumatic Clamping with settable pressure.
● Selectable Unit of measurement.
● Test Program storage with easy recall function.
● Test wise data management and storage.
● Network enabled for sharing or printing LAN.
● USB Ports for data download or Backup & Restore.
● Data delete protection via administrative password.
● Remote Support via internet enabled.
● Long Term Data Storage
Capacity: 14 Kg/cm².
Least Count: 0.01 for 14 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to Provide)

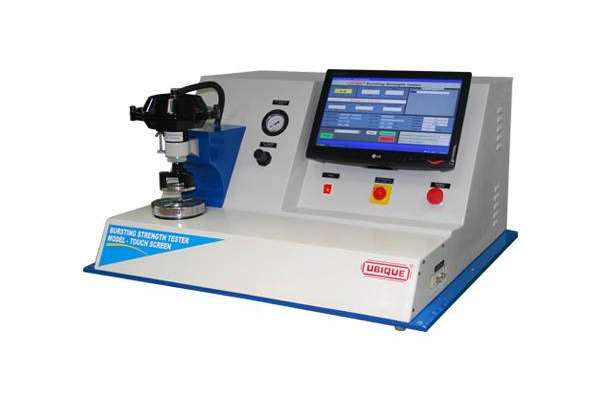

UBIQUE Bursting Strength Tester for Paper
Model: Microprocessor based Touch Screen Control Panel Model
Application: Bursting Stregth Test of Paper as per TAPPI standard T-403 and other relevant international standards.
Features:
● Computerised 17" Resistive Touch Screen Control Panel
● Preloaded official softwares with back/restore & data
● Easy change over from Paper test head to Board test head.
● Programable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data bacthes.
● Automatic Pneumatic Clamping with settable pressure.
● Adujustable clamp penetration setting.
● Programable Menu for Test Parameters and Batch Information.
● Communication: USB port X 2 & LAN port X 1
● Remote Assistance enabled
● Long term Data Storage
Capacity: 14 Kg/cm².
Least Count: 0.01 for 14 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
Board Testing
UBIQUE Bursting Strength Tester for Board
Model: Digital Economy with Manual clamping
Application: Bursting Strength Test of Paper Board as per TAPPI standard T-807, T-810 and other relevant international standards.
Features:
● Push Button operation
● Abression free Manual clamping with ball spring.
● LED indicator for digital indication of test results with peak hold function
● Selectable Unit of measurement
Capacity: 35 Kg/cm².
Least Count: 0.01 for 35 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
UBIQUE Bursting Strength Tester for Board
Model: Digital with Automatic clamping
Application: Bursting Strength Test of Paper Board as per TAPPI standard T-807, T-810 and other relevant international standards.
Features:
● One touch Test start operation to perform full test cycle automatically.
● Automatic Pneumatic Clamping with settable pressure.
● Abression free Manual clamping with ball spring.
● LED indicator for digital indication of test results with peak hold function
● Selectable Unit of measurement
Capacity: 35 Kg/cm².
Least Count: 0.01 for 35 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to Provide)
UBIQUE Bursting Strength Tester for Board
Model: Micro Processor based Digital Model
Application: Bursting Strength Test of Paper Board as per TAPPI standard T-807, T-810 and other relevant international standards.
Features:
● LCD indicator for digital indication of test results with peak hold function.
● One touch Test start operation to perform full test cycle automatically.
● Easy change over from Paper test head to Board test head.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Programmable Menu for Test Parameters and Batch Information.
● Review of previous test batch.
● Fast Mode for approach and retreat.
● Printer port (LPT1) for Printed report.
● Serial Port (RS232) for Data transfer - Software included.
Capacity: 35 Kg/cm².
Least Count: 0.01 for 35 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
Data & Print: 80 col dot matrix Printer OR WIN 7 PC (user to provide)
UBIQUE Bursting Strength Tester for Board
Model: HMI Control Panel
Application: Bursting Strength Test of Paper as per TAPPI standard T-807, T-810 and other relevant international standards.
Features:
● Operations via 7" HMI Touch Panel powered by CONNEXT.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Selectable Unit of measurement.
● Test Program storage with easy recall function.
● Test wise data management and storage.
● Network enabled for sharing or printing LAN.
● USB Ports for data download or Backup & Restore.
● Data delete protection via administrative password.
● Remote Support via internet enabled.
● Long Term Data Storage
Other attachment on request for customisation.
Capacity: 35 Kg/cm².
Least Count: 0.01 for 40 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to Provide)
UBIQUE Bursting Strength Tester for Board
Model: Microprocessor based Touch Screen Control Panel Model
Application: Bursting Strength Test of Paper Board as per TAPPI standard T-807, T-810 and other relevant international standards.
Features:
● Computerized 17" Resistive Touch Screen Control Panel
● Preloaded official software’ with back/restore & data
● Easy change over from Paper test head to Board test head.
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data batches.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Programable Menu for Test Parameters and Batch Information.
● Communication: USB port X 2 & LAN port X 1
● Remote Assistance enabled
● Long term Data Storage
Capacity: 70 Kg/cm².
Least Count: 0.01 for 70 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
UBIQUE Bursting Strength Tester for Board
Model: Microprocessor based Touch Screen CONNEXT+ Control Panel Model
Application: Bursting Strength Test of Paper as we as Paper Board as per TAPPI T-807, T-810 and other relevant international standards.
Features:
● Operations via 17" HMI Capacitive Touch Panel powered by CONNEXT.
● Easy change over from Paper test head to Board test head.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data batches.
● User management and data audits
● Communication: USB port X 2 & LAN port X 1
● Remote Assistance enabled
● Long term Data Storage
Capacity: 35 Kg/cm².
Least Count: 0.01 for 35 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
Data & Print: 80 col dot matrix Printer OR WIN 7 PC (user to provide)
UBIQUE Bursting Strength Tester for Board
Model: Digital Economy with Manual clamping
Application: Bursting Strength Test of Paper as per TAPPI standard T-403 and other relevant international standards.
Features:
● Push Button operation
● Abression free Manual clamping with ball spring.
● LED indicator for digital indication of test results with peak hold function
● Selectable Unit of measurement
Capacity: 70 Kg/cm².
Least Count: 0.01 for 70 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
UBIQUE Bursting Strength Tester for Board
Model: Digital with Automatic clamping
Application: Bursting Strength Test of Paper as per TAPPI standard T-807, T-810 and other relevant international standards.
Features:
● One touch Test start operation to perform full test cycle automatically.
● Automatic Pneumatic Clamping with settable pressure.
● Abression free Manual clamping with ball spring.
● LED indicator for digital indication of test results with peak hold function
● Selectable Unit of measurement
Capacity: 70 Kg/cm².
Least Count: 0.01 for 70 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to Provide)
UBIQUE Bursting Strength Tester for Board
Model: HMI Control Panel
Application: Bursting Strength Test of Paper as per TAPPI standard T-807, T-810 and other relevant international standards.
Features:
● Operations via 7" HMI Touch Panel powered by CONNEXT.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Selectable Unit of measurement.
● Test Program storage with easy recall function.
● Test wise data management and storage.
● Network enabled for sharing or printing LAN.
● USB Ports for data download or Backup & Restore.
● Data delete protection via administrative password.
● Remote Support via internet enabled.
● Long Term Data Storage
Other attachment on request for customisation.
Capacity: 70 Kg/cm².
Least Count: 0.01 for 70 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to Provide)
UBIQUE Bursting Strength Tester for Board
Model: Micro Processor based Digital Model
Application: Bursting Strength Test of Paper Board as per TAPPI standard T-807, T-810 and other relevant international standards.
Features:
● LCD indicator for digital indication of test results with peak hold function.
● One touch Test start operation to perform full test cycle automatically.
● Easy change over from Paper test head to Board test head.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Programmable Menu for Test Parameters and Batch Information.
● Review of previous test batch.
● Fast Mode for approach and retreat.
● Printer port (LPT1) for Printed report.
● Serial Port (RS232) for Data transfer - Software included.
Capacity: 70 Kg/cm².
Least Count: 0.01 for 70 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
Data & Print: 80 col dot matrix Printer OR WIN 7 PC (user to provide)
UBIQUE Bursting Strength Tester for Board
Model: Microprocessor based Touch Screen Control Panel Model
Application: Bursting Strength Test of Paper Board as per TAPPI standard T-807, T-810 and other relevant international standards.
Features:
● Computerized 17" Resistive Touch Screen Control Panel
● Preloaded official softwares with back/restore & data
● Easy change over from Paper test head to Board test head.
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data batches.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Programmable Menu for Test Parameters and Batch Information.
● Communication: USB port X 2 & LAN port X 1
● Remote Assistance enabled
● Long term Data Storage
Capacity: 70 Kg/cm².
Least Count: 0.01 for 70 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
UBIQUE Bursting Strength Tester for Board
Model: Microprocessor based Touch Screen CONNEXT+ Control Panel Model
Application: Bursting Strength Test of Paper as we as Paper Board as per TAPPI T-807, T-810 and other relevant international standards.
Features:
● Operations via 17" HMI Capacitive Touch Panel powered by CONNEXT.
● Easy change over from Paper test head to Board test head.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data batches.
● User management and data audits
● Communication: USB port X 2 & LAN port X 1
● Remote Assistance enabled
● Long term Data Storage
Capacity: 70 Kg/cm².
Least Count: 0.01 for 70 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
Paper & Board Testing
UBIQUE Bursting Strength Tester for Paper & Board
Model: Digital Economy with Manual clamping
Application: Application: Bursting Strength Test of Paper as we as Paper Board as per TAPPI standard T-403, T-807, T-810 and other relevant international standards.
Features:
● Push Button operation
● Abression free Manual clamping with ball spring.
● Easy change over from Paper test head to Board test head.
● LED indicator for digital indication of test results with peak hold function
● Selectable Unit of measurement
Capacity: 35 Kg/cm².
Least Count: 0.01 for 35 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
UBIQUE 2-in-1 Bursting Stregth Tester for Paper & Board
Model: Digital with Automatic clamping
Application: Application: Bursting Strength Test of Paper as we as Paper Board as per TAPPI standard T-403, T-807, T-810 and other relevant international standards.
Features:
● One touch Test start operation to perform full test cycle automatically.
● Automatic Pneumatic Clamping with settable pressure.
● Easy change over from Paper test head to Board test head.
● LED indicator for digital indication of test results with peak hold function
● Selectable Unit of measurement
Capacity: 35 Kg/cm².
Least Count: 0.01 for 35 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to Provide)
UBIQUE 2-in1 Bursting Strength Tester for Paper & Board
Model: HMI Control Panel
Application: Bursting Strength Test of Paper as we as Paper Board as per TAPPI standard T-403, T-807, T-810 and other relevant international standards.
Features:
● LCD indicator for digital indication of test results with peak hold function.
● One touch Test start operation to perform full test cycle automatically.
● Easy change over from Paper test head to Board test head.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Programmable Menu for Test Parameters and Batch Information.
● Review of previous test batch.
● Fast Mode for approach and retreat.
● Printer port (LPT1) for Printed report.
● Serial Port (RS232) for Data transfer - Software included.
● Long term Data Storage
Capacity: 35 Kg/cm².
Least Count: 0.01 for 35 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
Data & Print: 80 col dot matrix Printer OR WIN 7 PC (user to provide)
UBIQUE 2-in1 Bursting Strength Tester for Paper & Board
Model: Microprocessor based Digital Model
Application: Bursting Stregth Test of Paper as we as Paper Board as per TAPPI standard T-403, T-807, T-810 and other relevant international standards.
Features:
● Operations via 7" HMI Touch Panel powered by CONNEXT.
● Easy change over from Paper test head to Board test head.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Selectable Unit of measurement.
● Test Program storage with easy recall function.
● Test wise data management and storage.
● Network enabled for sharing or printing LAN.
● USB Ports for data download or Backup & Restore.
● Data delete protection via administrative password.
● Remote Support via internet enabled.
● Long Term Data Storage
Other attachment on request for customization.
Capacity: 35 Kg/cm².
Least Count: 0.01 for 35 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
UBIQUE 2-in1 Bursting Strength Tester for Paper & Board
Model: Microprocessor based Touch Screen Control Panel Model
Application: Bursting Stregth Test of Paper as we as Paper Board as per TAPPI standard T-403, T-807, T-810 and other relevant international standards.
Features:
● Computerized 17" Resistive Touch Screen Control Panel
● Preloaded official softwares with back/restore & data
● Easy change over from Paper test head to Board test head.
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data bacthes.
● Automatic Pneumatic Clamping with settable pressure.
● Adujustable clamp penetration setting.
● Programable Menu for Test Parameters and Batch Information.
● Communication: USB port X 2 & LAN port X 1
● Remote Assistance enabled
● Long term Data Storage
Capacity: 35 Kg/cm².
Least Count: 0.01 for 35 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
UBIQUE 2-in1 Bursting Strength Tester for Paper & Board
Model: Microprocessor based Touch Screen CONNEXT+ Control Panel Model
Application: Bursting Stregth Test of Paper as we as Paper Board as per TAPPI standard T-403, T-807, T-810 and other relevant international standards.
Features:
● Operations via 17" HMI Capacitive Touch Panel powered by CONNEXT.
● Easy change over from Paper test head to Board test head.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data batches.
● User management and data audits
● Communication: USB port X 2 & LAN port X 1
● Remote Assistance enabled
● Long term Data Storage
Capacity: 35 Kg/cm².
Least Count: 0.01 for 35 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
UBIQUE Bursting Stregth Tester for Paper & Board
Model: Digital Economy with Manual clamping
Application: Application: Bursting Stregth Test of Paper as we as Paper Board as per TAPPI standard T-403, T-807, T-810 and other relevant international standards.
Features:
● Push Button operation
● Abression free Manual clamping with ball spring.
● Easy change over from Paper test head to Board test head.
● LED indicator for digital indication of test results with peak hold function
● Selectable Unit of measurement
Capacity: 35 Kg/cm².
Least Count: 0.01 for 35 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
UBIQUE 2-in-1 Bursting Stregth Tester for Paper & Board
Model: Digital with Automatic clamping
Application: Application: Bursting Stregth Test of Paper as we as paper board as per TAPPI standard T-403, T-807, T-810 and other relevant international standards.
Features:
● One touch Test start operation to perform full test cycle automatically.
● Automatic Pneumatic Clamping with settable pressure.
● Easy change over from Paper test head to Board test head.
● Abression free Manual clamping with ball spring.
● LED indicator for digital indication of test results with peak hold function
● Selectable Unit of measurement
Capacity: 35 Kg/cm².
Least Count: 0.01 for 35 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to Provide)
UBIQUE 2-in1 Bursting Strength Tester for Paper & Board
Model: Micro Processor Based Digital Model
Application: Bursting Strength Test of Paper as we as Paper Board as per TAPPI standard T-403, T-807, T-810 and other relevant international standards.
Features:
● LCD indicator for digital indication of test results with peak hold function.
● One touch Test start operation to perform full test cycle automatically.
● Easy change over from Paper test head to Board test head.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Programmable Menu for Test Parameters and Batch Information.
● Review of previous test bacth.
● Fast Mode for approach and retreat.
● Printer port (LPT1) for Printed report.
● Serial Port (RS232) for Data transfer - Software included.
● Long term Data Storage
Capacity: 70 Kg/cm².
Least Count: 0.01 for 70 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
Data & Print: 80 col dot matrix Printer OR WIN 7 PC (user to provide)
UBIQUE 2-in1 Bursting Strength Tester for Paper & Board
Model: HMI Control Panel
Application: Bursting Strength Test of Paper as we as Paper Board as per TAPPI standard T-403, T-807, T-810 and other relevant international standards.
Features:
● Operations via 7" HMI Touch Panel powered by CONNEXT.
● Easy change over from Paper test head to Board test head.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Selectable Unit of measurement.
● Test Program storage with easy recall function.
● Test wise data management and storage.
● Network enabled for sharing or printing LAN.
● USB Ports for data download or Backup & Restore.
● Data delete protection via administrative password.
● Remote Support via internet enabled.
● Long term Data Storage
Capacity: 70 Kg/cm².
Least Count: 0.01 for 70 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
UBIQUE 2-in1 Bursting Strength Tester for Paper & Board
Model: Microprocessor based Touch Screen Control Panel Model
Application: Bursting Stregth Test of Paper as we as Paper Board as per TAPPI standard T-403, T-807, T-810 and other relevant international standards.
Features:
● Computerised 17" Resistive Touch Screen Control Panel
● Preloaded official softwares with back/restore & data
● Easy change over from Paper test head to Board test head.
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data bacthes.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Programmable Menu for Test Parameters and Batch Information.
● Communication: USB port X 2 & LAN port X 1
● Remote Assistance enabled
● Long term Data Storage
Capacity: 70 Kg/cm².
Least Count: 0.01 for 70 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
UBIQUE 2-in1 Bursting Strength Tester for Paper & Board
Model: Microprocessor based Touch Screen CONNEXT+ Control Panel Model
Application: Bursting Stregth Test of Paper as we as Paper Board as per TAPPI standard T-403, T-807, T-810 and other relevant international standards.
Features:
● Operations via 17" HMI Capacitive Touch Panel powered by CONNEXT.
● Easy change over from Paper test head to Board test head.
● Automatic Pneumatic Clamping with settable pressure.
● Adjustable clamp penetration setting.
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data batches.
● User management and data audits
● Communication: USB port X 2 & LAN port X 1
● Remote Assistance enabled
● Long term Data Storage
Capacity: 70 Kg/cm².
Least Count: 0.01 for 70 Kg/cm²
Accuracy: > 0.5% FS
Power Supply: 230 V, 50 Hz Single Phase
Compressed Air: 5 kg/cm² at 5 CFM (User to provide)
