Corrugated and solid fibre board boxes are subject to compressive forces when stacked and during transportation.
It is vital to determine the Compression Strength of the Box in order to make sure that the box will be able to resist the anticipated compressive forces and to determine the load that the box will be able to with stand during transit and storage.
This equipment is designed to measure ability of the container resist external compression loads during transit and storage.
Compression Strength Test also serves as a useful index of over all quality of the material and workmanship of the box.
Application: Box Compression Strength Tester as per TAPPI T-804, FEFCO TM50, ASTM D 642 and other relevant international standards.
● Peak Load Test Mode
● Auto Tare of preload on Test Start
● LED indicator for digital idication of test reults with peak hold function
● Load Indicator for realtime load values
● Length indicator for realtime corresponding deflection values
● Review of previous test
● Fast Mode for approach and retreat
Capacity: 1000 kgF.
Least Count: 1 kgF
Accuracy: > 0.5% FS
Power Supply: 415 V, 50 Hz Three Phase

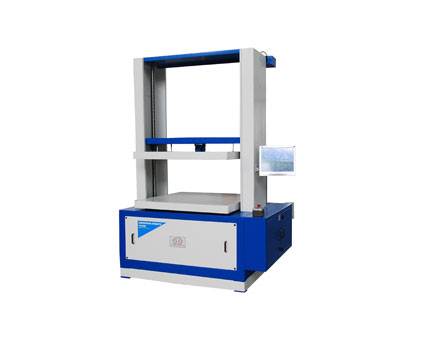

UBIQUE Box Compression Strength Tester
Model: Micro Processor based Digital Model
Application: Box Compression Strength Tester as per TAPPI T-804, FEFCO TM50, ASTM D 642 and other relevant international standards.
Features:
● Preset Load & Preset Length Test Modes
● Auto Tare of preload on Test Start
● Auto retreat after test completion
● LCD indicator for digital idication of test reults with peak hold function
● LED Load Indicator for realtime load values
● LED Length indicator for realtime corresponding deflection values
● Programable Menu for Test Parameters and Batch Information.
● Review of previous test bacth.
● Fast Mode for approach and retreat.
● Printer port (LPT1) for Printed report.
● Serial Port (RS232) for Data transfer - Software included.
Max Box Size: 1000 X 1000 X 1000 mm (L X W X H)
Capacity: 1000 kgF
Least Count: 1 kgF
Accuracy: > 0.5% FS
Power Supply: 415 V, 50 Hz Three Phase
Data & Print: 80 col dot matrix Printer OR WIN 7 PC to be provided by user
Application: Box Compression Strength Tester as per TAPPI T-804, FEFCO TM50, ASTM D 642 and other relevant international standards.
● Operations via 7" HMI Capacitive Touch Panel powered by CONNEXT.
● Peak Load, Preset Load & Preset Length Test Modes.
● Auto Tare of preload on Test Start.
● Auto retreat after test completion.
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Storage & Review and reporting of past test batches.
● Fast Mode for approach and retreat.
● Communication: USB port X 2 & LAN port X 1
Capacity: 1000 kgF
Least Count: 1 kgF
Accuracy: > 0.5% FS
Power Supply: 415 V, 50 Hz Three Phase
UBIQUE Box Compression Strength Tester
Model: Microprocessor based Touch Screen Control Panel Model
Application: Box Compression Strength Tester as per TAPPI T-804, FEFCO TM50, ASTM D 642 and other relevant international standards.
Features:
● Peak Load, Preset Load & Preset Length Test Modes.
● Auto Tare of preload on Test Start.
● Auto retreat after test completion.
● Computerised 17" Resistive Touch Screen Control Panel
● Preloaded official softwares with back/restore & data
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data bacthes.
● Fast Mode for approach and retreat.
● Communication: USB port X 2 & LAN port X 1
● Single phase Periferal Power supply provision
● Remote Assistance enabled
Max Box Size: 1000 X 1000 X 1000 mm (L X W X H)
Capacity: 1000 kgF
Least Count: 1 kgF
Accuracy: > 0.5% FS
Power Supply: 415 V, 50 Hz Three Phase
UBIQUE Box Compression Strength Tester
Model: Microprocessor based Touch Screen CONNEXT+ Control Panel Model
Application: Box Compression Strength Tester as per TAPPI T-804, FEFCO TM50, ASTM D 642 and other relevant international standards.
Features:
● Operations via 17" HMI Capacitive Touch Panel powered by CONNEXT.
● Peak Load, Preset Load & Preset Length Test Modes.
● Auto Tare of preload on Test Start.
● Auto retreat after test completion.
● Preloaded official softwares with back/restore & data
● Programable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data batches.
● User management and data audits
● Fast Mode for approach and retreat.
● Communication: USB port X 2 & LAN port X 1
● Single phase Periferal Power supply provision
● Remote Assistance enabled
Max Box Size: 1000 X 1000 X 1000 mm (L X W X H)
Capacity: 1000 kgF
Least Count: 1 kgF
Accuracy: > 0.5% FS
Power Supply: 415 V, 50 Hz Three Phase
UBIQUE Box Compression Strength Tester
Model: Microprocessor based Touch Screen CONNEXT+ Control Panel Model
Application: Box Compression Strength Tester as per TAPPI T-804, FEFCO TM50, ASTM D 642, ISTA Non-Simulated tests & other relevant international standards.
Features:
● Operations via 17" HMI Capacitive Touch Panel powered by CONNEXT.
● Peak Load, Preset Load & Preset Length Test Modes.
● Additional ability to conduct Static Load Test
● Auto Tare of preload on Test Start.
● Auto retreat after test completion.
● Preloaded official softwares with back/restore & data
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data batches.
● User management and data audits
● Fast Mode for approach and retreat.
● Communication: USB port X 2 & LAN port X 1
● Single phase Periferal Power supply provision
● Remote Assistance enabled
Max Box Size: 1000 X 1000 X 1000 mm (L X W X H)
Capacity: 1000 kgF
Least Count: 1 kgF
Accuracy: > 0.5% FS
Power Supply: 415 V, 50 Hz Three Phase
UBIQUE Box Compression Strength Tester
Model: Digital Model
Application: Box Compression Strength Tester as per TAPPI T-804, FEFCO TM50, ASTM D 642 and other relevant international standards.
Features:
● Peak Load Test Mode
● Auto Tare of preload on Test Start
● LED indicator for digital indication of test results with peak hold function
● Load Indicator for mealtime load values
● Length indicator for mealtime corresponding deflection values
● Review of previous test
● Fast Mode for approach and retreat
Max Box Size: 1000 X 1000 X 1000 mm (L X W X H)
Capacity: 2000 kgF.
Least Count: 1 kgF
Accuracy: > 0.5% FS
Power Supply: 415 V, 50 Hz Three Phase
UBIQUE Box Compression Strength Tester
Model: Micro Processor based Digital Model
Application: Box Compression Strength Tester as per TAPPI T-804, FEFCO TM50, ASTM D 642 and other relevant international standards.
Features:
● Preset Load & Preset Length Test Modes
● Auto Tare of preload on Test Start
● Auto retreat after test completion
● LCD indicator for digital indication of test results with peak hold function
● LED Load Indicator for real time load values
● LED Length indicator for real time corresponding deflection values
● Programmable Menu for Test Parameters and Batch Information.
● Review of previous test bacth.
● Fast Mode for approach and retreat.
● Printer port (LPT1) for Printed report.
● Serial Port (RS232) for Data transfer - Software included.
Max Box Size: 1000 X 1000 X 1000 mm (L X W X H)
Capacity: 2000 kgF
Least Count: 1 kgF
Accuracy: > 0.5% FS
Power Supply: 415 V, 50 Hz Three Phase
Data & Print: 80 col dot matrix Printer OR WIN 7 PC to be provided by user
UBIQUE Box Compression Strength Tester
Model: Microprocessor based Touch Screen Control Panel Model
Application: Box Compression Strength Tester as per TAPPI T-804, FEFCO TM50, ASTM D 642 and other relevant international standards.
Features:
● Operations via 7" HMI Capacitive Touch Panel powered by CONNEXT.
● Peak Load, Preset Load & Preset Length Test Modes.
● Auto Tare of preload on Test Start.
● Auto retreat after test completion.
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Storage & Review and reporting of past test batches.
● Fast Mode for approach and retreat.
● Communication: USB port X 2 & LAN port X 1
Max Box Size: 1000 X 1000 X 1000 mm (L X W X H)
Capacity: 2000 kgF
Least Count: 1 kgF
Accuracy: > 0.5% FS
Power Supply: 415 V, 50 Hz Three Phase
UBIQUE Box Compression Strength Tester
Model: Microprocessor based Touch Screen Control Panel Model
Application: Box Compression Strength Tester as per TAPPI T-804, FEFCO TM50, ASTM D 642 and other relevant international standards.
Features:
● Peak Load, Preset Load & Preset Length Test Modes.
● Auto Tare of preload on Test Start.
● Auto retreat after test completion.
● Computerised 17" Resistive Touch Screen Control Panel
● Preloaded official softwares with back/restore & data
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data batches.
● Fast Mode for approach and retreat.
● Communication: USB port X 2 & LAN port X 1
● Single phase Periferal Power supply provision
● Remote Assistance enabled
Max Box Size: 1000 X 1000 X 1000 mm (L X W X H)
Capacity: 2000 kgF
Least Count: 1 kgF
Accuracy: > 0.5% FS
Power Supply: 415 V, 50 Hz Three Phase
UBIQUE Box Compression Strength Tester
Model: Microprocessor based Touch Screen CONNEXT+ Control Panel Model
Application: Box Compression Strength Tester as per TAPPI T-804, FEFCO TM50, ASTM D 642 and other relevant international standards.
Features:
● Operations via 17" HMI Capacitive Touch Panel powered by CONNEXT.
● Peak Load, Preset Load & Preset Length Test Modes.
● Auto Tare of preload on Test Start.
● Auto retreat after test completion.
● Preloaded official softwares with back/restore & data
● Programmable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data batches.
● User management and data audits
● Fast Mode for approach and retreat.
● Communication: USB port X 2 & LAN port X 1
● Single phase Periferal Power supply provision
● Remote Assistance enabled
Max Box Size: 1000 X 1000 X 1000 mm (L X W X H)
Capacity: 2000 kgF
Least Count: 1 kgF
Accuracy: > 0.5% FS
Power Supply: 415 V, 50 Hz Three Phase
UBIQUE Box Compression Strength Tester
Model: Microprocessor based Touch Screen CONNEXT+ Control Panel Model
Application: Box Compression Strength Tester as per TAPPI T-804, FEFCO TM50, ASTM D 642, ISTA Non-Simulated tests & other relevant international standards.
Features:
● Operations via 17" HMI Capacitive Touch Panel powered by CONNEXT.
● Peak Load, Preset Load & Preset Length Test Modes.
● Additional ability to conduct Static Load Test
● Auto Tare of preload on Test Start.
● Auto retreat after test completion.
● Preloaded official softwares with back/restore & data
● Programable Menu for Test Criteria, Parameters and Batch Information.
● Manage, Store, Review and reporting of past test data bacthes.
● User management and data audits
● Fast Mode for approach and retreat.
● Communication: USB port X 2 & LAN port X 1
● Single phase Periferal Power supply provision
● Remote Assistance enabled
Max Box Size: 1000 X 1000 X 1000 mm (L X W X H)
Capacity: 2000 kgF
Least Count: 1 kgF
Accuracy: > 0.5% FS
Power Supply: 415 V, 50 Hz Three Phase
